Slurry Industrial Vibro Sifter Machine Moverable SUS304 1 Year Warranty
Attention1:

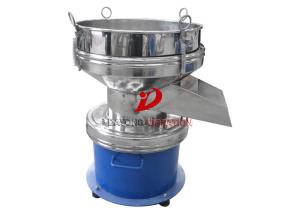

The DY-450 filtering sieve is a customizable machine, which can be manufactured as the customers' different needs.
Attention2:
The DY-450 filtering sieve also be called as other name in different country, for example, sometimes will also named it as juice filter machine; juice filter and so on.
Main Features
1. High efficiency, refined design, duratIon.
2. Standard vibrating screen has Good sealing property.
3. Frame have a dedicated connection with rubber, fastening with a locking band.
4. Dust does not spill.
5. Easy to operate, impurities and coarse materials can be discharged automatically, continuous operations.
6. Fine powder can be reached 500 mesh. the most fine powder it filter is 5 micron.
Using Scope
Dayong 450 type high precision vibrating filter is a kind of small size machine named by its feature of ultra silence,which is widely used in laboratory,test department and scientific research department to analyze the precise structure of powder and grain materials,to measure the content of liquid and solid materials.
1. Metallurgy: aluminum , copper powder, ore alloy powder, welding rod powder.
2. Wastewater treatment: disposed oil, disposed dye waste water, active carbon.
Working Principle
The filter vibrating screen adopts a new type of vertical vibrating motor as the vibration source. The upper and lower ends of the vertical vibrating motor are equipped with eccentric weights, which can generate horizontal, vertical and inclined three-dimensional motion. The exciting force is transmitted to the screen frame through the receiving tray. And materials to achieve an excellent grade. By adjusting the phase angle of the upper and lower eccentric weights, the trajectory of the material on the screen surface can be changed to ensure sufficient grading of the material.
Technical Parameters
| Motor |
Sieve Size |
Diameter |
Effective Screen Surface |
Power |
| Single vertical motor |
0.038-3mm |
380mm |
1460r/min |
0.18kw |
FAQ
If you are interested in our products but dont know which kind of machine are suitable for you, just tell us the following information then my engineer would choose a suitable machine for you according to your working process.
1. What's name and feature of your raw material?
2. What's your raw material size?
3. What's your capacity you need?
4. How about your special requirment for our machine?
Q: How do your after-sale service work if the product got damaged?
a. In warranty 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: Vulnerable parts do not include.)
Q: How many kinds of material are supported?
a. All stainless steel.
b. All carbon steel.
c. Contact part Stainless steel.
